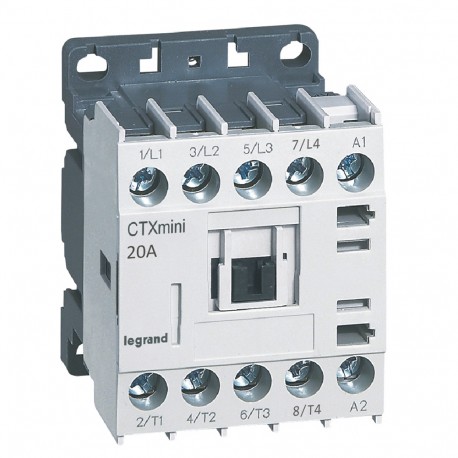

LEGRAND 417140 417140 LEGRAND CTX MINI 4P 20A 24VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417140 LEGRAND CTX MINI 4P 20A 24VAC

417140

417140

LEGRAND

1 Pcs.

CTX MINI 4P 20A - 24VAC 4-pole mini contactors CTX³ - 20 A - 24 V~ - screw terminals CTX³ Mini Contactor 4P 20A - 24V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

CTX MINI 4P 20A 24VAC by Legrand (part number 417140) operates as a compact contactor frequently integrated into commercial and industrial control panels for regulating electrical loads and automation routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 16 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 20.4 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 20.4 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.218
  • Weight (g)193.00
Product characteristics
4-pole mini contactors
  • With integrated auxiliary contact
  • Power terminals: screw terminals
20 A
  • Max. operating current AC 1 : 20 A
  • Max. operating current AC 3 : 16 A
  • Control Voltage : 24 V~
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
