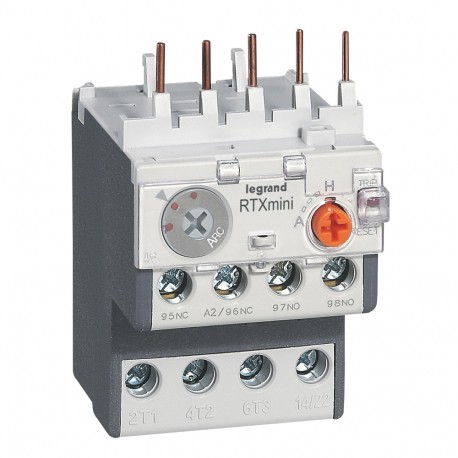

LEGRAND 417092 417092 LEGRAND RTX³ MINI RELE 9-13A D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417092 LEGRAND RTX³ MINI RELE 9-13A D

417092

417092

LEGRAND

1 Pcs.

RTX³ MINI RELE 9-13A D RTX³ Thermal Relays - 9.0 to 13.0A - for 3P CTX³ Mini Contactors

Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand thermal overload relay (417092) functions as a protective device in motor starter circuits, guarding electrical motors against excessive heat buildup caused by overcurrents. Panel builders integrate these units to safely disconnect power before winding insulation degrades. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Release class (EF006668): CLASS 10
  • Max. rated operation voltage Ue (EF007357): 690 V
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 9 A
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

Overview

RTX³ thermal relays for CTX³ 3-pole mini-contactors - from 9.0 to 13.0A - with integrated auxiliary contact 1NA and 1NC

description
RTX³, thermal relay for CTX³ mini power contactor, provides thermal protection of motors against overloads, long start-up times and permanent motor lock-up

specifications

Adjustable Current Range9-13 A
Maximum rated operating voltage Ue690 V
Type of mountingDirect coupling
Main Current Circuit Connection TypeThreaded connection
Number of auxiliary contacts normally closed1
Number of auxiliary contacts normally open1
Number of auxiliary contacts as change contact0
Shooting classCLASSE 10

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
