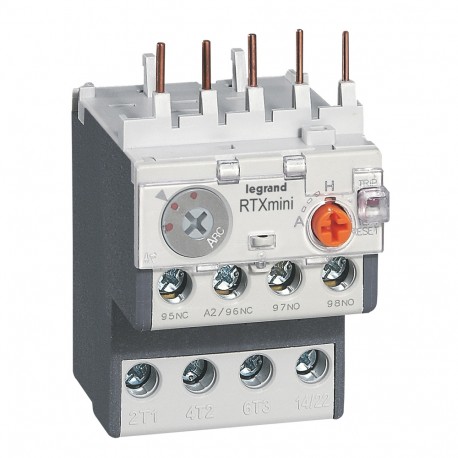

417091 LEGRAND RTX³ MINI RELE 7-10A D
417091
417091
LEGRAND
1 Pcs.
RTX³ MINI RELE 7-10A D
RTX³ Thermal Relays - 7.0 to 10.0A - for 3P CTX³ Mini Contactors
Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Overview
RTX³ thermal relays for CTX³ 3-pole mini-contactors - 7.0 to 10.0A - with integrated auxiliary contact 1NA and 1NC
description
RTX³, thermal relay for CTX³ mini power contactor, provides thermal protection of motors against overloads, long start-up times and permanent motor lock-upspecifications
| Adjustable Current Range | 7-10 A |
|---|---|
| Maximum rated operating voltage Ue | 690 V |
| Type of mounting | Direct coupling |
| Main Current Circuit Connection Type | Threaded connection |
| Number of auxiliary contacts normally closed | 1 |
|---|---|
| Number of auxiliary contacts normally open | 1 |
| Number of auxiliary contacts as change contact | 0 |
| Shooting class | CLASSE 10 |
| Feature Name | Feature Value |
|---|---|
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Release class (EF006668) | CLASS 10 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Mounting method (EF000003) | Direct attachment |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Adjustable current range (EF008211) | 7 A |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
