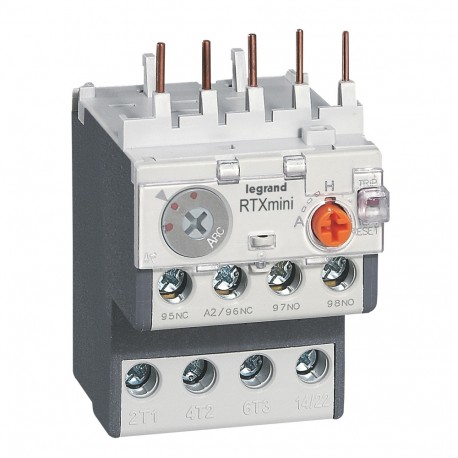

LEGRAND 417086 417086 LEGRAND RTX³ MINI RELE 1.6-2.5A D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417086 LEGRAND RTX³ MINI RELE 1.6-2.5A D

417086

417086

LEGRAND

1 Pcs.

RTX³ MINI RELE 1.6-2.5A D RTX³ Thermal Relays - 1.6 to 2.5A - for 3P CTX³ Mini Contactors

Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Thermal overload protection for electric motors in automated control panels is provided by components like the Legrand 417086 RTX³ mini relay. This category of electrical hardware detects prolonged overcurrent situations and trips contactors to prevent motor burnout.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Release class (EF006668): CLASS 10
  • Max. rated operation voltage Ue (EF007357): 690 V
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 1.6 A
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

Overview

RTX³ thermal relays for CTX³ 3-pole mini-contactors - from 1.6 to 2.5A - with integrated auxiliary contact 1NA and 1NC

description
RTX³, thermal relay for CTX³ mini power contactor, provides thermal protection of motors against overloads, long start-up times and permanent motor lock-up

specifications

Adjustable Current Range1.6-2.5 A
Maximum rated operating voltage Ue690 V
Type of mountingDirect coupling
Main Current Circuit Connection TypeThreaded connection
Number of auxiliary contacts normally closed1
Number of auxiliary contacts normally open1
Number of auxiliary contacts as change contact0
Shooting classCLASSE 10

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
