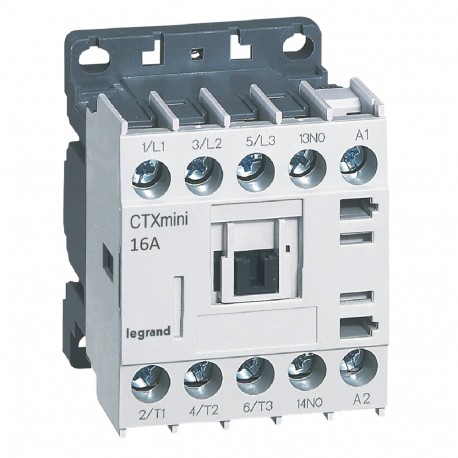

LEGRAND 417066 417066 LEGRAND CTX MINI 3P 16A 1NO 230VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417066 LEGRAND CTX MINI 3P 16A 1NO 230VAC

417066

417066

LEGRAND

1 Pcs.

CTX MINI 3P 16A 1NO 230VAC 3-pole mini contactors CTX³ - 16 A (AC3) 230 V~ - 1 NO - screw terminals CTX³ 3P 16A Mini Contactor + 1NA Auxiliary Contact - 230V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 417066 CTX MINI power contactor provides automated switching control for low-voltage industrial loads and smaller motor circuits. These modular components are commonly utilized inside control cabinets to manage repetitive start-stop operations safely and efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 16 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.215
  • Weight (g)195.00
Product characteristics
3-pole mini contactors
  • With integrated auxiliary contact
  • Power terminals: screw terminals
16 A (AC3)
  • Integrated auxiliary contact
  • 1 NO
  • 3-phase motor 400/415 V : 7.5 kW
  • Control Voltage :
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors
