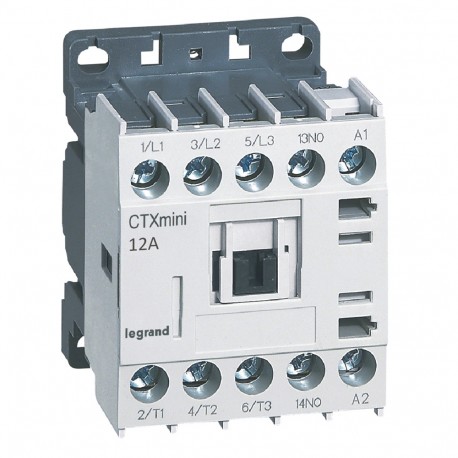

LEGRAND 417046 417046 LEGRAND CTX MINI 3P 12A 1NO 230VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417046 LEGRAND CTX MINI 3P 12A 1NO 230VAC

417046

417046

LEGRAND

1 Pcs.

CTX MINI 3P 12A 1NO 230VAC 3-pole mini contactors CTX³ - 12 A (AC3) 230 V~ - 1 NO - screw terminals CTX³ 3P 12A Mini Contactor + 1NA Auxiliary Contact - 230V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 417046 CTX MINI is a compact 3-pole contactor designed for streamlined electrical integration in control panels. Panel builders select mini contactors to save valuable DIN rail space while ensuring reliable performance for smaller industrial loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 12 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.218
  • Weight (g)195.00
Product characteristics
3-pole mini contactors
  • With integrated auxiliary contact
  • Power terminals: screw terminals
12 A (AC3)
  • Integrated auxiliary contact
  • 1 NO
  • 3-phase motor 400/415 V : 5.5 kW
  • Control Voltage :
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
