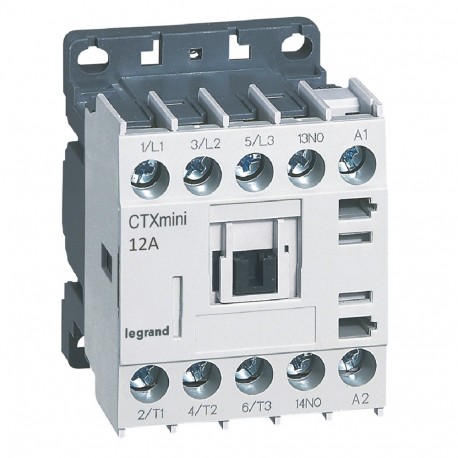

417040 LEGRAND CTX MINI 3P 12A 1NO 24VAC
417040
417040
LEGRAND
1 Pcs.
CTX MINI 3P 12A 1NO 24VAC
3-pole mini contactors CTX³ - 12 A (AC3) - 24 V~ - 1 NO - screw terminals
CTX³ 3P 12A Mini Contactor + Auxiliary Contact 1NA - 24V~
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.204
- Weight (g)192.00
Product characteristics
3-pole mini contactors- With integrated auxiliary contact
- Power terminals: screw terminals
- Integrated auxiliary contact
- 1 NO
- 3-phase motor 400/415 V : 5.5 kW
- Control Voltage :
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Voltage type for actuating (EF008242) | AC |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 12 A |
| Modular version (EF001126) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 20.4 V |
| Type of electrical connection of main circuit (EF006819) | Cable clamp |
| Rated control supply voltage AC 60 Hz (EF003979) | 20.4 V |
