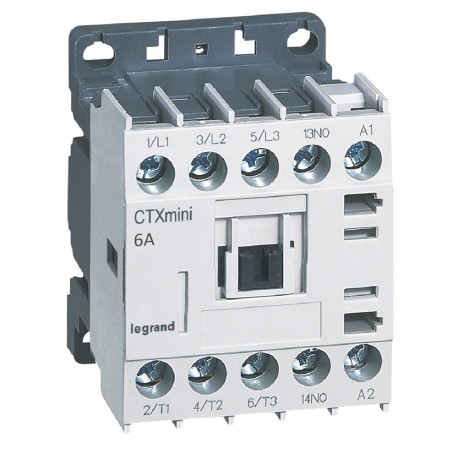

LEGRAND 417006 417006 LEGRAND CTX MINI 3P 6A 1NO 230VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417006 LEGRAND CTX MINI 3P 6A 1NO 230VAC

417006

417006

LEGRAND

1 Pcs.

CTX MINI 3P 6A 1NO 230VAC 3-pole mini contactors CTX³ - 6 A (AC3) 230 V~ - 1 NO - screw terminals CTX³ 3P 6A Mini Contactor + 1NA Auxiliary Contact - 230V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Contactor 417006 by Legrand is a compact modular switching component deployed in control cabinets to manage lighting circuits, small motors, and auxiliary automation processes. It facilitates reliable remote operation in commercial and industrial electrical panels.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 2.2 kW
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 6 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.218
  • Weight (g)194.00
Product characteristics
3-pole mini contactors
  • With integrated auxiliary contact
  • Power terminals: screw terminals
6 A (AC3)
  • Integrated auxiliary contact
  • 1 NO
  • 3-phase motor 400/415 V : 2.2 kW
  • Control Voltage :
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
