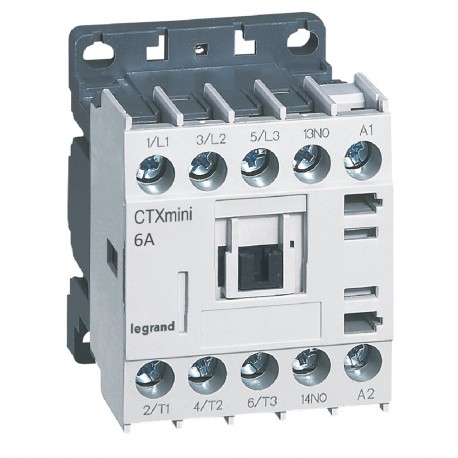

LEGRAND 417000 417000 LEGRAND CTX MINI 3P 6A 1NO 24VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

417000 LEGRAND CTX MINI 3P 6A 1NO 24VAC

417000

417000

LEGRAND

1 Pcs.

CTX MINI 3P 6A 1NO 24VAC 3-pole mini contactors CTX³ - 6 A (AC3) - 24 V~ - 1 NO - screw terminals CTX³ 3P 6A Mini Contactor + 1NA Auxiliary Contact - 24V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

CTX MINI 3P 6A 1NO 24VAC 417000 by Legrand is a compact electromechanical contactor built for safe power switching in tight control panel spaces and specialized automation machinery. Mini contactors like this are frequently deployed to manage fractional horsepower motors and auxiliary control circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V: 20 A
  • Number of normally open contacts as main contact: 3
  • Rated operation power at AC-3, 400 V: 2.2 kW
  • Voltage type for actuating: AC
  • Rated operation current Ie at AC-3, 400 V: 6 A
  • Modular version: Yes
  • Rated control supply voltage AC 50 Hz: 20.4 V
  • Type of electrical connection of main circuit: Cable clamp
  • Rated control supply voltage AC 60 Hz: 20.4 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.218
  • Weight (g)191.00
Product characteristics
3-pole mini contactors
  • With integrated auxiliary contact
  • Power terminals: screw terminals
6 A (AC3)
  • Integrated auxiliary contact
  • 1 NO
  • 3-phase motor 400/415 V : 2.2 kW
  • Control Voltage :
General characteristics
Mini contactors CTX³ - 6 to 16 A industrial contactors

Product Datasheet
