View larger
Images are for illustrative purposes only. Please refer to data sheet for details

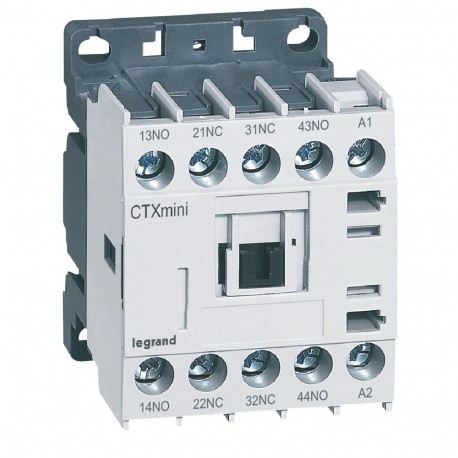

416820 LEGRAND RELAY CONTROL-2NA+2NC 24VAC
416820
416820
LEGRAND
1 Pcs.
RELAY CONTROL-2NA+2NC 24VAC
CTX³ control relay - 2 NO + 2 NC - 24 V~
Automation > Contactor relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.215
- Weight (g)193.00
Product characteristics
CTX³ control relays- 4-pole
- Conform to IEC 60 947
- Ith = 10 A
- Low consumption coil
- 24 V~
General characteristics
Control relays CTX³| Feature Name | Feature Value |
|---|---|
| With LED indication (EF005950) | No |
| Connection type auxiliary circuit (EF006820) | Screw connection |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Interface (EF000594) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Mounting method (EF000003) | DIN-rail/screw |
| Rated operation current Ie, 400 V (EF001378) | 1.9 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Voltage type for actuating (EF008242) | AC |
| Number of auxiliary contacts as normally closed contact, delayed switching (EF007281) | 0 |
| Number of auxiliary contacts as normally open contact, leading (EF007282) | 0 |
| Rated control supply voltage AC 50 Hz (EF003978) | 20.4 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 20.4 V |
| Suitable for manual operation (EF002978) | Yes |
