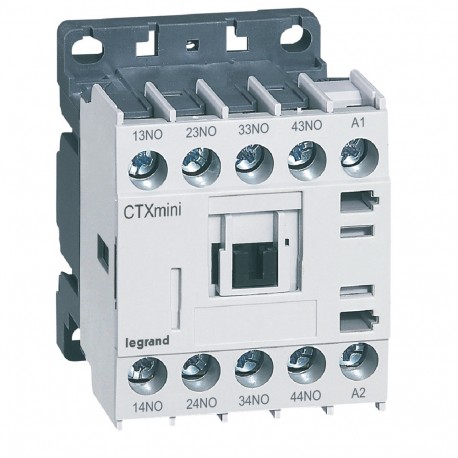

LEGRAND 416800 416800 LEGRAND RELAY CONTROL 4NA 24VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416800 LEGRAND RELAY CONTROL 4NA 24VAC

416800

416800

LEGRAND

1 Pcs.

RELAY CONTROL 4NA 24VAC CTX³ control relay - 4 NO - 24 V~

Automation > Contactor relay
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 416800 relay control functions as an electromechanical switching interface in electrical switchboards, enabling automated control, signal isolation, and logic routing. These control relays are standard across commercial and industrial installations for managing pilot lights, motor starters, and secondary automation loops. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With LED indication (EF005950): No
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Interface (EF000594): Yes
  • Mounting method (EF000003): DIN-rail/screw
  • Rated operation current Ie, 400 V (EF001378): 1.9 A
  • Voltage type for actuating (EF008242): AC
  • Rated control supply voltage AC 50 Hz (EF003978): 20.4 V
  • Rated control supply voltage AC 60 Hz (EF003979): 20.4 V
  • Suitable for manual operation (EF002978): Yes

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.218
  • Weight (g)192.00
Product characteristics
CTX³ control relays
  • 4-pole
  • Conform to IEC 60 947
  • Ith = 10 A
  • Low consumption coil
4 NO
  • 24 V~
General characteristics
Control relays CTX³

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
