View larger
Images are for illustrative purposes only. Please refer to data sheet for details

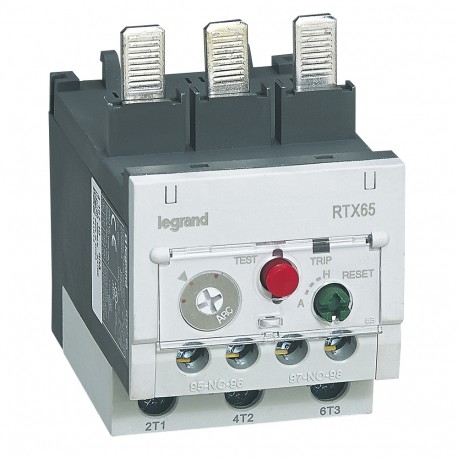

416708 LEGRAND RTX RELAY 28-40A D T4
416708
416708
LEGRAND
1 Pcs.
RTX RELAY 28-40A D T4
Thermal overload relay RTX³ 65 - 28 to 40 A - for CTX³ 65 - diff.
RTX³ 65 Thermal Relays - 28 to 40A for CTX³ 65
Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.548
- Weight (g)336.00
Product characteristics
Thermal overload relays- Class 10A
- Integrated auxiliary contacts 1 NO + 1 NC
- For CTX³ 65
- Standard type with screw terminals
- Differential type with cage terminals
- Type diff.
- Adjustment range - I min. : 28 A
- Adjustment range - I max. : 40 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors- Thermal protection against overloads, long starting times and lasting stalling of the motor
- Differential type ensures a better protection in case of one phase failure thanks to faster tripping
- Conform to IEC 60 947-1, IEC 60 947-4-1
| Feature Name | Feature Value |
|---|---|
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Release class (EF006668) | CLASS 10 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Mounting method (EF000003) | Direct attachment |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Adjustable current range (EF008211) | 28 A |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
