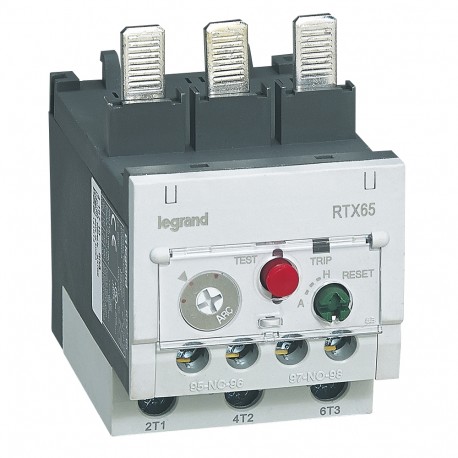

416705 LEGRAND RTX RELAY 16-22A D T4
416705
416705
LEGRAND
1 Pcs.
Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand RTX relay 416705 functions as a thermal overload device designed to protect machinery and electrical circuits against excess operating current. By integrating directly into contactor assemblies, it prevents operational overheating in demanding industrial automation setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Release class (EF006668): CLASS 10
- Max. rated operation voltage Ue (EF007357): 690 V
- Mounting method (EF000003): Direct attachment
- Adjustable current range (EF008211): 16 A
- Type of electrical connection of main circuit (EF006819): Screw connection
More info
▲- Pack (number of units)1
- Volume (dm3)0.552
- Weight (g)339.00
- Class 10A
- Integrated auxiliary contacts 1 NO + 1 NC
- For CTX³ 65
- Standard type with screw terminals
- Differential type with cage terminals
- Type diff.
- Adjustment range - I min. : 16 A
- Adjustment range - I max. : 22 A
- Thermal protection against overloads, long starting times and lasting stalling of the motor
- Differential type ensures a better protection in case of one phase failure thanks to faster tripping
- Conform to IEC 60 947-1, IEC 60 947-4-1
