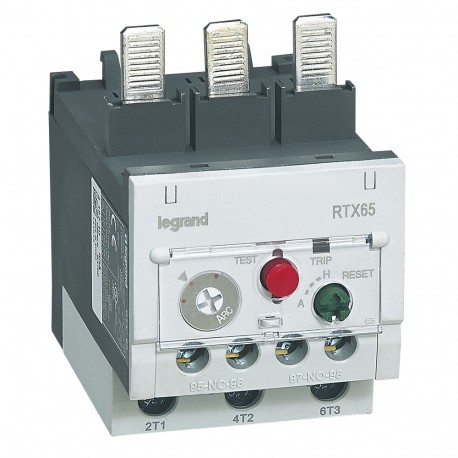

LEGRAND 416703 416703 LEGRAND RTX RELAY 9-13A D T4 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416703 LEGRAND RTX RELAY 9-13A D T4

416703

416703

LEGRAND

1 Pcs.

RTX RELAY 9-13A D T4 Thermal overload relay RTX³ 65 - 9 to 13 A - for CTX³ 65 - diff. RTX³ 65 Thermal Relays - 9 to 13A for CTX³ 65

Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing dependable motor safeguarding, the Legrand RTX RELAY 9-13A D T4 functions as a thermal overload relay to interrupt power when continuous overcurrent conditions threaten industrial equipment. Devices of this type integrate into motor starter assemblies to protect windings from thermal damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Release class (EF006668): CLASS 10
  • Max. rated operation voltage Ue (EF007357): 690 V
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 9 A
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.567
  • Weight (g)333.00
Product characteristics
Thermal overload relays
  • Class 10A
  • Integrated auxiliary contacts 1 NO + 1 NC
RTX³ 65
  • For CTX³ 65
  • Standard type with screw terminals
  • Differential type with cage terminals
  • Type diff.
  • Adjustment range - I min. : 9 A
  • Adjustment range - I max. : 13 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors
  • Thermal protection against overloads, long starting times and lasting stalling of the motor
  • Differential type ensures a better protection in case of one phase failure thanks to faster tripping
  • Conform to IEC 60 947-1, IEC 60 947-4-1
