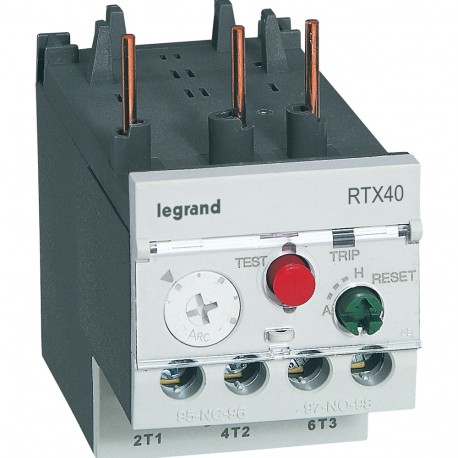

LEGRAND 416675 416675 LEGRAND RTX RELAY 18-25A D T2,3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416675 LEGRAND RTX RELAY 18-25A D T2,3

416675

416675

LEGRAND

1 Pcs.

RTX RELAY 18-25A D T2,3 Thermal overload relay RTX³ 40 - 18 to 25 A - for CTX³ 22 and 40 - diff. RTX³ 40 Thermal Relays - 18 to 25A for CTX³ 22 & 40

Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 416675 RTX relay is a thermal overload component engineered to protect industrial electric motors from excessive temperature increases and current overloads within automated installations. Devices of this type are routinely paired with contactors in control cabinets to interrupt power before damaging heat builds up in the motor windings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Release class (EF006668): CLASS 10
  • Max. rated operation voltage Ue (EF007357): 690 V
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 18 A
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.38
  • Weight (g)187.00
Product characteristics
Thermal overload relays
  • Class 10A
  • Integrated auxiliary contacts 1 NO + 1 NC
RTX³ 40
  • For CTX³ 22 and 40
  • With screw terminals
  • Type diff.
  • Adjustment range - I min. : 18 A
  • Adjustment range - I max. : 25 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors
  • Thermal protection against overloads, long starting times and lasting stalling of the motor
  • Differential type ensures a better protection in case of one phase failure thanks to faster tripping
  • Conform to IEC 60 947-1, IEC 60 947-4-1
