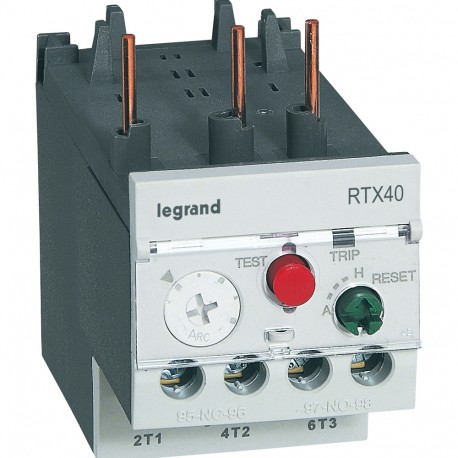

416670 LEGRAND RTX RELAY 6-9A D T2,3
416670
416670
LEGRAND
1 Pcs.
Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
416670 LEGRAND RTX RELAY 6-9A D T2,3 is a Legrand thermal overload relay utilized in electrical distribution and motor control panels to prevent thermal damage from overcurrents. These electromechanical safety units monitor motor current and trigger auxiliary contacts to stop the system when limits are exceeded. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Release class (EF006668): CLASS 10
- Max. rated operation voltage Ue (EF007357): 690 V
- Mounting method (EF000003): Direct attachment
- Adjustable current range (EF008211): 6 A
- Type of electrical connection of main circuit (EF006819): Screw connection
More info
▲- Pack (number of units)1
- Volume (dm3)0.356
- Weight (g)181.00
- Class 10A
- Integrated auxiliary contacts 1 NO + 1 NC
- For CTX³ 22 and 40
- With screw terminals
- Type diff.
- Adjustment range - I min. : 6 A
- Adjustment range - I max. : 9 A
- Thermal protection against overloads, long starting times and lasting stalling of the motor
- Differential type ensures a better protection in case of one phase failure thanks to faster tripping
- Conform to IEC 60 947-1, IEC 60 947-4-1
