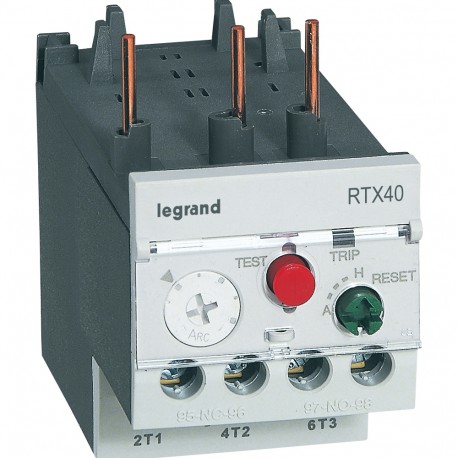

416667 LEGRAND RTX RELAY 2.5-4.0 A D T2,3
416667
416667
LEGRAND
1 Pcs.
RTX RELAY 2.5-4.0 A D T2,3
Thermal overload relay RTX³ 40 - 2.5 to 4 A - for CTX³ 22 and 40 - diff.
RTX³ 40 Thermal Relays - 2.5 to 4A for CTX³ 22 & 40
Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Overload relay protects electric motors from thermal stress and excessive current draw by tripping the contactor control circuit when necessary. This Legrand unit attaches directly to compatible starters for seamless panel integration.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Release class (EF006668): CLASS 10
- Max. rated operation voltage Ue (EF007357): 690 V
- Mounting method (EF000003): Direct attachment
- Adjustable current range (EF008211): 2.5 A
- Type of electrical connection of main circuit (EF006819): Screw connection
More info
▲- Pack (number of units)1
- Volume (dm3)0.367
- Weight (g)178.00
Product characteristics
Thermal overload relays- Class 10A
- Integrated auxiliary contacts 1 NO + 1 NC
- For CTX³ 22 and 40
- With screw terminals
- Type diff.
- Adjustment range - I min. : 2.5 A
- Adjustment range - I max. : 4 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors- Thermal protection against overloads, long starting times and lasting stalling of the motor
- Differential type ensures a better protection in case of one phase failure thanks to faster tripping
- Conform to IEC 60 947-1, IEC 60 947-4-1
