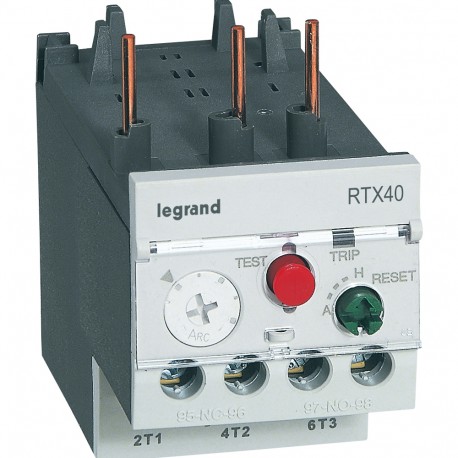

416664 LEGRAND RTX RELAY 0.63-1.0 A D T2,3
416664
416664
LEGRAND
1 Pcs.
RTX RELAY 0.63-1.0 A D T2,3
Thermal overload relay RTX³ 40 - 0.63 to 1 A - for CTX³ 22 and 40 - diff.
RTX³ 40 Thermal Relays - 0.63 to 1A for CTX³ 22 & 40
Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Overload relay provides essential thermal protection for industrial motors, interrupting power when current exceeds safe operating thresholds. This Legrand relay is designed for direct mounting on compatible contactors.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Release class (EF006668): CLASS 10
- Max. rated operation voltage Ue (EF007357): 690 V
- Mounting method (EF000003): Direct attachment
- Adjustable current range (EF008211): 0.63 A
- Type of electrical connection of main circuit (EF006819): Screw connection
More info
▲- Pack (number of units)1
- Volume (dm3)0.372
- Weight (g)178.00
Product characteristics
Thermal overload relays- Class 10A
- Integrated auxiliary contacts 1 NO + 1 NC
- For CTX³ 22 and 40
- With screw terminals
- Type diff.
- Adjustment range - I min. : 0.63 A
- Adjustment range - I max. : 1 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors- Thermal protection against overloads, long starting times and lasting stalling of the motor
- Differential type ensures a better protection in case of one phase failure thanks to faster tripping
- Conform to IEC 60 947-1, IEC 60 947-4-1
