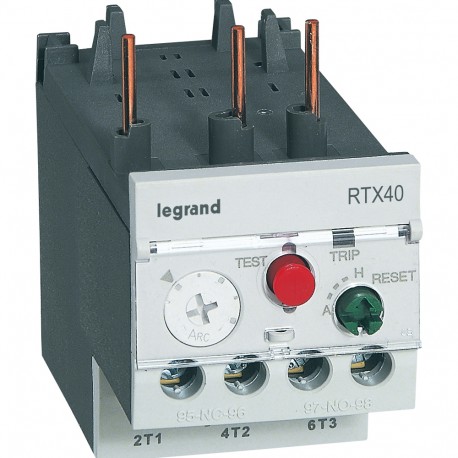

LEGRAND 416663 416663 LEGRAND RTX RELAY 0.4-0.63 A D T2,3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416663 LEGRAND RTX RELAY 0.4-0.63 A D T2,3

416663

416663

LEGRAND

1 Pcs.

RTX RELAY 0.4-0.63 A D T2,3 Thermal overload relay RTX³ 40 - 0.4 to 0.63 A - for CTX³ 22 and 40 - diff. RTX³ 40 Thermal Relays - 0.4 to 0.63A for CTX³ 22 & 40

Automation > Thermal overload relay
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 416663 Legrand RTX relay is a specialized motor protection device utilized in industrial control panels to prevent thermal damage from prolonged current overloads. Such components safeguard three-phase machinery by interrupting the contactor coil circuit when operating thresholds are exceeded. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Release class (EF006668): CLASS 10
  • Max. rated operation voltage Ue (EF007357): 690 V
  • Mounting method (EF000003): Direct attachment
  • Adjustable current range (EF008211): 0.4 A
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.368
  • Weight (g)176.00
Product characteristics
Thermal overload relays
  • Class 10A
  • Integrated auxiliary contacts 1 NO + 1 NC
RTX³ 40
  • For CTX³ 22 and 40
  • With screw terminals
  • Type diff.
  • Adjustment range - I min. : 0.4 A
  • Adjustment range - I max. : 0.63 A
General characteristics
Thermal relays RTX³ - for CTX³ 3-pole industrial contactors
  • Thermal protection against overloads, long starting times and lasting stalling of the motor
  • Differential type ensures a better protection in case of one phase failure thanks to faster tripping
  • Conform to IEC 60 947-1, IEC 60 947-4-1
