View larger
Images are for illustrative purposes only. Please refer to data sheet for details

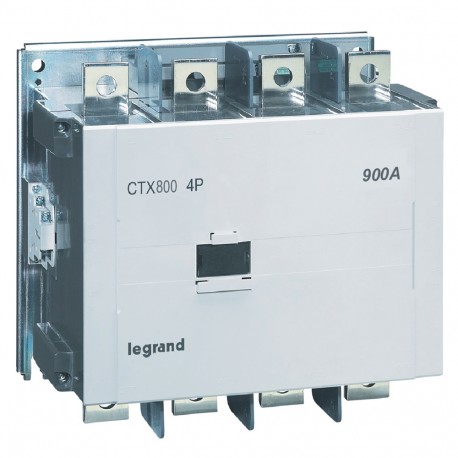

416526 LEGRAND CTX 4P 900A AC1 200-240V ACDC
416526
416526
LEGRAND
1 Pcs.
CTX 4P 900A AC1 200-240V ACDC
4-pole contactors CTX³ - with auxiliary contact - 900/800 A - 100-240 V~/=
Contactor CTX³ 4P 900A 200V - 240V AC/200V - 220V DC
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)37.406
- Weight (g)28 443.00
Product characteristics
Contactors CTX³- Power terminals: screw terminals
- Auxiliary contacts: 2 NO + 2 NC
- Max. operating current AC 1 : 900 A
- Max. operating current AC 3 : 800 A
- Control Voltage : 200-240 V~/=
General characteristics
4-pole contactors CTX³ - 40 A to 900 A industrial contactors- Conform to IEC 60 947-1, IEC 60 947-4-1
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 170 V |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 900 A |
| Number of normally open contacts as main contact (EF001374) | 4 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 440 kW |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 800 A |
| Modular version (EF001126) | No |
| Rated control supply voltage AC 50 Hz (EF003978) | 170 V |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated control supply voltage AC 60 Hz (EF003979) | 170 V |
