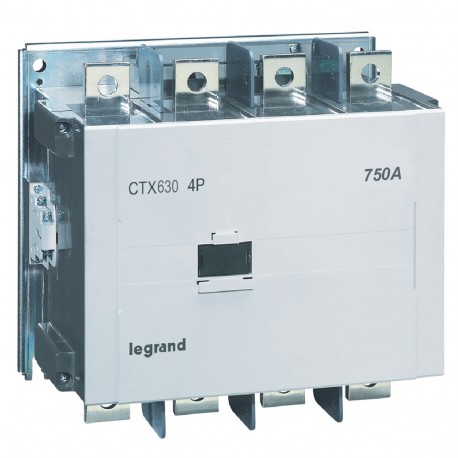

LEGRAND 416516 416516 LEGRAND CTX 4P 750A AC1 200-240V ACDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416516 LEGRAND CTX 4P 750A AC1 200-240V ACDC

416516

416516

LEGRAND

1 Pcs.

CTX 4P 750A AC1 200-240V ACDC 4-pole contactors CTX³ - with auxiliary contact - 750/630 A - 100-240 V~/= Contactor CTX³ 4P 750A 200V - 240V AC/200V - 220V DC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand four-pole contactor, part number 416516, provides high-capacity switching capabilities for heavy industrial power distribution, commercial installations, and major motor or resistive load management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 170 V
  • Rated operation current Ie at AC-1, 400 V (EF001393): 750 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 330 kW
  • Voltage type for actuating (EF008242): AC/DC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 630 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 170 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 170 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)37.406
  • Weight (g)28 495.00
Product characteristics
Contactors CTX³
  • Power terminals: screw terminals
With integrated auxiliary contacts
  • Auxiliary contacts: 2 NO + 2 NC
  • Max. operating current AC 1 : 750 A
  • Max. operating current AC 3 : 630 A
  • Control Voltage : 200-240 V~/=
General characteristics
4-pole contactors CTX³ - 40 A to 900 A industrial contactors
  • Conform to IEC 60 947-1, IEC 60 947-4-1
