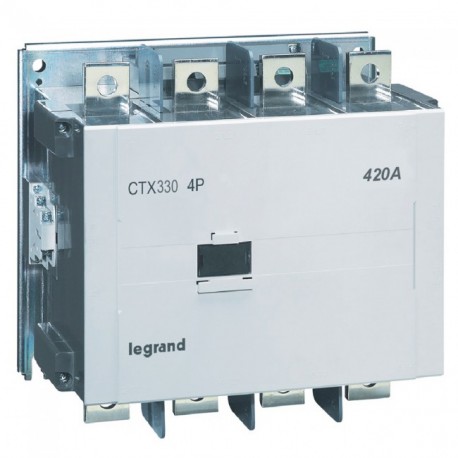

LEGRAND 416496 416496 LEGRAND CTX 4P 420A AC1 100-240V ACDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416496 LEGRAND CTX 4P 420A AC1 100-240V ACDC

416496

416496

LEGRAND

1 Pcs.

CTX 4P 420A AC1 100-240V ACDC 4-pole contactors CTX³ - with auxiliary contact - 420/330 A - 100-240 V~/= 4P CTX³ Contactor 420A - 330A

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 416496 CTX is a four-pole industrial contactor designed for managing high-current power distribution and large resistive or inductive loads. Such contactors provide dependable switching control for heavy industrial facilities and automated electrical panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 85 V
  • Rated operation current Ie at AC-1, 400 V (EF001393): 420 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 160 kW
  • Voltage type for actuating (EF008242): AC/DC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 330 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 85 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 85 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)22.071
  • Weight (g)11 215.00
Product characteristics
Contactors CTX³
  • Power terminals: screw terminals
With integrated auxiliary contacts
  • Auxiliary contacts: 2 NO + 2 NC
  • Max. operating current AC 1 : 420 A
  • Max. operating current AC 3 : 330 A
  • Control Voltage : 100-240 V~/=
General characteristics
4-pole contactors CTX³ - 40 A to 900 A industrial contactors
  • Conform to IEC 60 947-1, IEC 60 947-4-1
