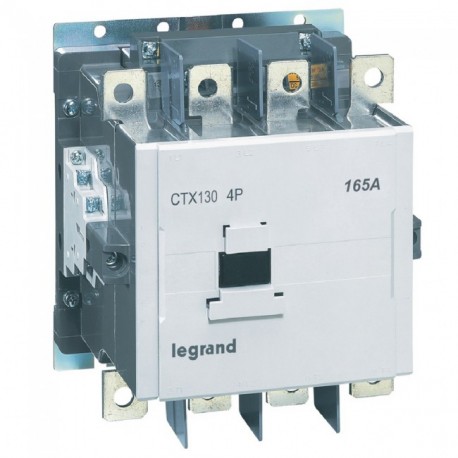

LEGRAND 416466 416466 LEGRAND CTX 4P 165A AC1 100-240V ACDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416466 LEGRAND CTX 4P 165A AC1 100-240V ACDC

416466

416466

LEGRAND

1 Pcs.

CTX 4P 165A AC1 100-240V ACDC 4-pole contactors CTX³ - with auxiliary contact - 165/120 A - 100-240 V~/= 4P CTX³ Contactor 165A - 120A

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand CTX 4P 165A contactor is a heavy-duty industrial switching device designed to manage large electrical loads, distribution lines, and industrial machinery safely. Its four-pole design provides extensive power control capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC: 85 V
  • Rated operation current Ie at AC-1, 400 V: 165 A
  • Number of normally open contacts as main contact: 4
  • Rated operation power at AC-3, 400 V: 60 kW
  • Voltage type for actuating: AC/DC
  • Rated operation current Ie at AC-3, 400 V: 120 A
  • Modular version: No
  • Rated control supply voltage AC 50 Hz: 85 V
  • Type of electrical connection of main circuit: Screw connection
  • Rated control supply voltage AC 60 Hz: 85 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)14.988
  • Weight (g)6 496.00
Product characteristics
Contactors CTX³
  • Power terminals: screw terminals
With integrated auxiliary contacts
  • Auxiliary contacts: 2 NO + 2 NC
  • Max. operating current AC 1 : 165 A
  • Max. operating current AC 3 : 130 A
  • Control Voltage : 100-240 V~/=
General characteristics
4-pole contactors CTX³ - 40 A to 900 A industrial contactors
  • Conform to IEC 60 947-1, IEC 60 947-4-1
