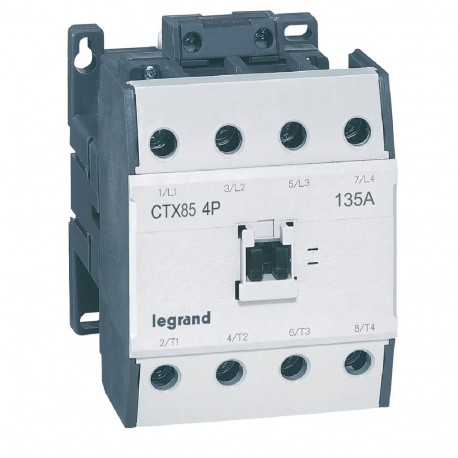

416456 LEGRAND CTX 4P 135A AC1 230V AC
416456
416456
LEGRAND
1 Pcs.
CTX 4P 135A AC1 230V AC
4-pole contactors CTX³ - without auxiliary contact - 135/85 A 230 V~
CTX³ Quadruple Contactors - non-contact auxiliary - 135/85A - 230V~
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand CTX 4P contactor provides robust four-pole switching for high-capacity industrial power systems, resistive loads, and motor control centers. This device is engineered for secure integration into standard electrical enclosures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operation current Ie at AC-1, 400 V (EF001393): 135 A
- Number of normally open contacts as main contact (EF001374): 4
- Rated operation power at AC-3, 400 V (EF001364): 45 kW
- Voltage type for actuating (EF008242): AC
- Rated operation current Ie at AC-3, 400 V (EF001392): 85 A
- Modular version (EF001126): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
- Type of electrical connection of main circuit (EF006819): Cable clamp
- Rated control supply voltage AC 60 Hz (EF003979): 195.5 V
More info
▲- Pack (number of units)1
- Volume (dm3)1.693
- Weight (g)1 427.00
Product characteristics
Contactors CTX³- Power terminals: screw terminals
- Max. operating current AC 1 : 135 A
- Max. operating current AC 3 : 85 A
- Control Voltage : 230 V~
General characteristics
4-pole contactors CTX³ - 40 A to 900 A industrial contactors- Conform to IEC 60 947-1, IEC 60 947-4-1
