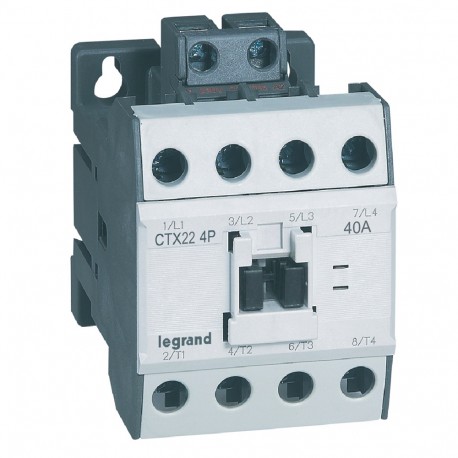

LEGRAND 416426 416426 LEGRAND CTX 4P 40A AC1 230V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416426 LEGRAND CTX 4P 40A AC1 230V AC

416426

416426

LEGRAND

1 Pcs.

CTX 4P 40A AC1 230V AC 4-pole contactors CTX³ - without auxiliary contact - 40/22 A 230 V~ CTX³ Quadruple Contactors - No Auxiliary Contact - 40/22A - 230V~

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 416426 CTX contactor is designed for switching power circuits and electrical loads within modular distribution boards. These modular switching units are widely used in commercial buildings and industrial automation for lighting and motor control.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 40 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Voltage type for actuating (EF008242): AC
  • Rated operation current Ie at AC-3, 400 V (EF001392): 22 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.374
  • Weight (g)400.00
Product characteristics
Contactors CTX³
  • Power terminals: screw terminals
Without integrated auxiliary contact
  • Max. operating current AC 1 : 40 A
  • Max. operating current AC 3 : 22 A
  • Control Voltage : 230 V~
General characteristics
4-pole contactors CTX³ - 40 A to 900 A industrial contactors
  • Conform to IEC 60 947-1, IEC 60 947-4-1

Product Datasheet
