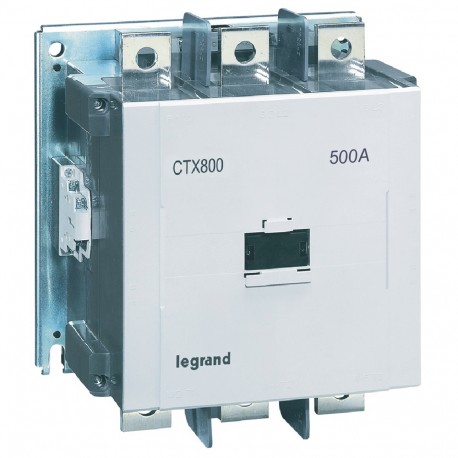

LEGRAND 416339 416339 LEGRAND CTX 3P 500A 380V-450V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416339 LEGRAND CTX 3P 500A 380V-450V AC

416339

416339

LEGRAND

1 Pcs.

CTX 3P 500A 380V-450V AC 3-pole contactors CTX³ 800 - 500 A - 380-450 V~ - 2 NO + 2 NC - screw terminals Contactor CTX³ 3P 500A 380V - 450V AC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand CTX contactor 416339 functions as a high-capacity switching unit built for extensive power distribution and heavy industrial motor control systems. It safely manages large electrical currents, providing dependable switching performance in heavy manufacturing applications.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 580 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 265 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 350 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 176 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 500 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 323 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 323 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)33.077
  • Weight (g)22 747.00
Product characteristics
CTX³ 800
  • With integrated auxiliary contacts
500 A (AC3) - 580 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 265 kW
  • Control Voltage : 380-450 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
