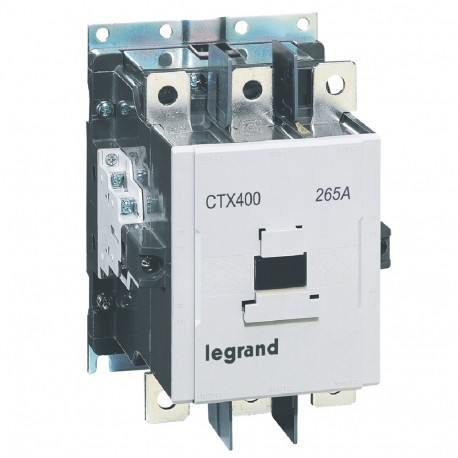

LEGRAND 416309 416309 LEGRAND CTX 3P 265A 380V-450V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416309 LEGRAND CTX 3P 265A 380V-450V AC

416309

416309

LEGRAND

1 Pcs.

CTX 3P 265A 380V-450V AC 3-pole contactors CTX³ 400 - 265 A - 380-450 V~ - 2 NO + 2 NC -screw terminals Contactor CTX³ 3P 265A 380V - 450V AC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand CTX 3P 265A 380V-450V AC is a high-capacity power contactor designed for frequent switching of large electrical loads and heavy industrial motors in distribution boards. It ensures reliable circuit control in demanding plant environments.

Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 300 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 147 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 200 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 102 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 265 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 323 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 323 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)17.736
  • Weight (g)9 312.00
Product characteristics
CTX³ 400
  • With integrated auxiliary contacts
265 A (AC3) - 300 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 147 kW
  • Control Voltage : 380-450 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
