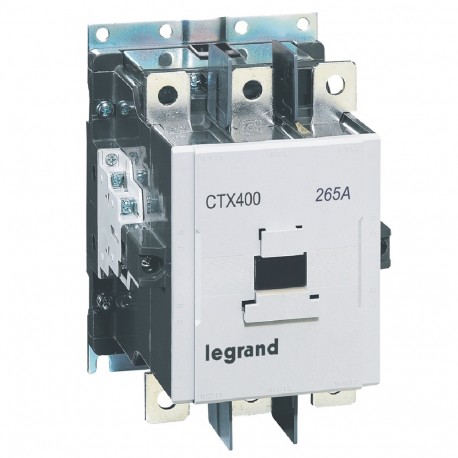

LEGRAND 416306 416306 LEGRAND CTX 3P 265A 100V-240V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416306 LEGRAND CTX 3P 265A 100V-240V AC/DC

416306

416306

LEGRAND

1 Pcs.

CTX 3P 265A 100V-240V AC/DC 3-pole contactors CTX³ 400 - 265 A - 100-240 V~/= - 2 NO + 2 NC -screw terminals Contactor CTX³ 3P 265A 100V - 240V AC/100V - 220V DC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 416306 LEGRAND CTX 3P 265A 100V-240V AC/DC is a robust power contactor used to handle large electrical currents in industrial automation architectures, safeguarding connected machinery against overload conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 85 V
  • Rated operation current Ie at AC-1, 400 V (EF001393): 300 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 147 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 200 A
  • Voltage type for actuating (EF008242): AC/DC
  • Rated operation power at AC-4, 400 V (EF008496): 102 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 265 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 85 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 85 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)17.694
  • Weight (g)9 490.00
Product characteristics
CTX³ 400
  • With integrated auxiliary contacts
265 A (AC3) - 300 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 147 kW
  • Control Voltage : 100-240 V~/=
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
