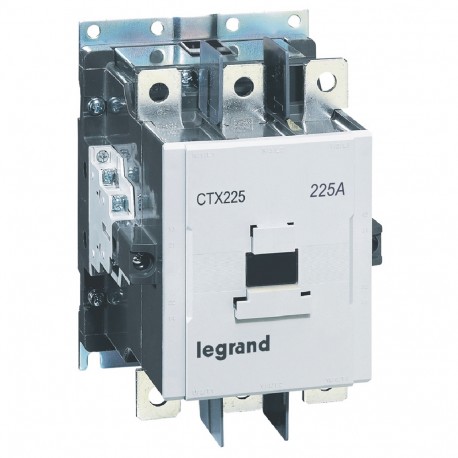

LEGRAND 416299 416299 LEGRAND CTX 3P 225A 380V-450V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416299 LEGRAND CTX 3P 225A 380V-450V AC

416299

416299

LEGRAND

1 Pcs.

CTX 3P 225A 380V-450V AC 3-pole contactors CTX³ 225 - 225 A - 380-450 V~ - 2 NO + 2 NC - screw terminals Contactor CTX³ 3P 225A 380V - 450V AC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for robust electrical distribution, the Legrand 416299 contactor provides reliable remote switching capabilities for high-current industrial loads and motor control centers. Industrial contactors ensure seamless electrical flow management in demanding manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 275 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 132 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 180 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 90 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 225 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 323 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 323 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)12.249
  • Weight (g)5 597.00
Product characteristics
CTX³ 225
  • With integrated auxiliary contacts
225 A (AC3) - 275 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 132 kW
  • Control Voltage : 380-450 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
