LEGRAND 416286 416286 LEGRAND CTX 3P 185A 100V-240V AC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416286 LEGRAND CTX 3P 185A 100V-240V AC/DC

416286

416286

LEGRAND

1 Pcs.

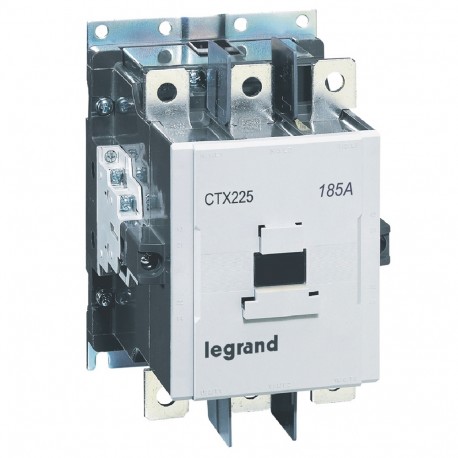

CTX 3P 185A 100V-240V AC/DC 3-pole contactors CTX³ 225 - 185 A - 100-240 V~/= - 2 NO + 2 NC -screw terminals Contactor CTX³ 3P 185A 100V - 240V AC/100V - 220V DC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand CTX Contactor is utilized for automated high-current power switching in industrial electrical panels, providing reliable control over large motors and heating loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 85 V
  • Rated operation current Ie at AC-1, 400 V (EF001393): 230 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 90 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 150 A
  • Voltage type for actuating (EF008242): AC/DC
  • Rated operation power at AC-4, 400 V (EF008496): 75 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 185 A
  • Modular version (EF001126): No
  • Rated control supply voltage AC 50 Hz (EF003978): 85 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 85 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)12.482
  • Weight (g)5 369.00
Product characteristics
CTX³ 225
  • With integrated auxiliary contacts
185 A (AC3) - 230 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 90 kW
  • Control Voltage : 100-240 V~/=
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
