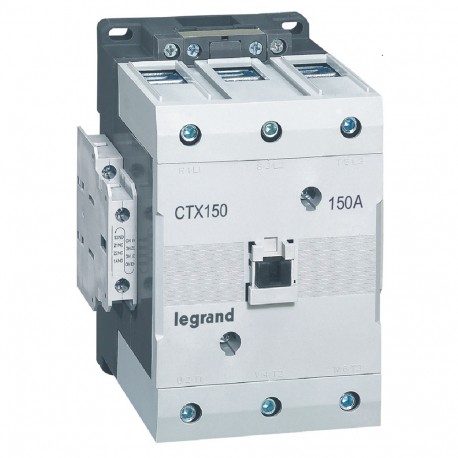

LEGRAND 416279 416279 LEGRAND CTX 3P 150A 2NO2NC 400V-440V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416279 LEGRAND CTX 3P 150A 2NO2NC 400V-440V

416279

416279

LEGRAND

1 Pcs.

CTX 3P 150A 2NO2NC 400V-440V 3-pole contactors CTX³ 150 - 150 A - 400-440 V~ - 2 NO + 2 NC - lug terminals Contactor CTX³ 3P 150A 2NO2NC 380V - 440V AC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 416279 CTX 3P contactor is designed for the remote switching of heavy electrical loads, frequently integrated into motor control centers and automated factory systems. These switching components ensure reliable power distribution and operational safety.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 210 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 75 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 110 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 55 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 150 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 340 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 340 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.024
  • Weight (g)2 423.00
Product characteristics
CTX³ 150
  • With integrated auxiliary contacts
150 A (AC3) - 210 A (AC1)
  • Cage terminals
  • 3-phase motor 400/415 V : 75 kW
  • Control Voltage : 400-440 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
