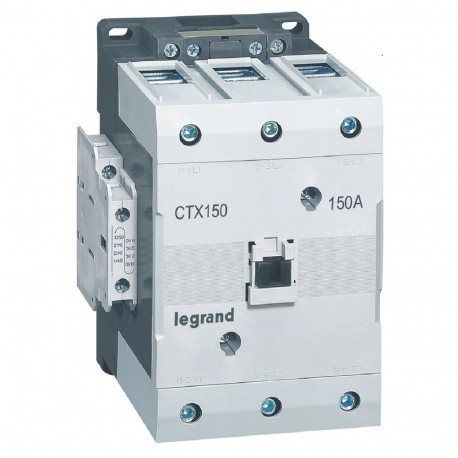

LEGRAND 416276 416276 LEGRAND CTX 3P 150A 2NO2NC 100V-240V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416276 LEGRAND CTX 3P 150A 2NO2NC 100V-240V

416276

416276

LEGRAND

1 Pcs.

CTX 3P 150A 2NO2NC 100V-240V 3-pole contactors CTX³ 150 - 150 A -100- 240 V~/= - 2 NO + 2 NC - lug terminals Contactor CTX³ 3P 150A 2NO2NC 100V - 240V AC/100V - 220V DC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy industrial machinery relies on high-capacity contactors like the Legrand 416276 to manage high-current motor circuits, heating systems, and automated production lines. This switching device handles demanding operational demands across multiple poles using an electromagnetic actuation mechanism.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 85 V
  • Rated operation current Ie at AC-1, 400 V (EF001393): 210 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 75 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 110 A
  • Voltage type for actuating (EF008242): AC/DC
  • Rated operation power at AC-4, 400 V (EF008496): 55 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 150 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 85 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 85 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)3.094
  • Weight (g)2 449.00
Product characteristics
CTX³ 150
  • With integrated auxiliary contacts
150 A (AC3) - 210 A (AC1)
  • Cage terminals
  • 3-phase motor 400/415 V : 75 kW
  • Control Voltage : 100-240 V~/=
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
