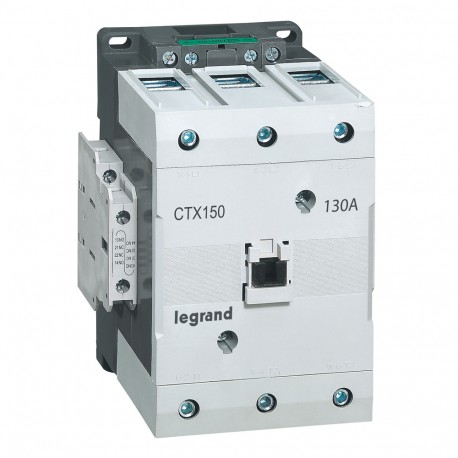

416256 LEGRAND CTX 3P 130A 2NO2NC 100V-240V
416256
416256
LEGRAND
1 Pcs.
CTX 3P 130A 2NO2NC 100V-240V
3-pole contactors CTX³ 150 - 130 A -100- 240 V~/= - 2 NO + 2 NC - lug terminals
Contactor CTX³ 3P 130A 2NO2NC 100V - 240V AC/100V - 220V DC
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand CTX 3P contactor is designed for heavy-duty motor control and automated switching applications within industrial distribution boards. It offers high operational capacity for demanding commercial and manufacturing environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage DC (EF003980): 85 V
- Rated operation current Ie at AC-1, 400 V (EF001393): 160 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation power at AC-3, 400 V (EF001364): 60 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 90 A
- Voltage type for actuating (EF008242): AC/DC
- Rated operation power at AC-4, 400 V (EF008496): 45 kW
- Rated operation current Ie at AC-3, 400 V (EF001392): 130 A
- Modular version (EF001126): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 85 V
- Type of electrical connection of main circuit (EF006819): Screw connection
- Rated control supply voltage AC 60 Hz (EF003979): 85 V
More info
▲- Pack (number of units)1
- Volume (dm3)2.961
- Weight (g)2 452.00
Product characteristics
CTX³ 150- With integrated auxiliary contacts
- Cage terminals
- 3-phase motor 400/415 V : 60 kW
- Control Voltage : 100-240 V~/=
- Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 130 A to 800 A industrial contactors- Conform to IEC 60947-1, IEC 60947-4-1
- Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks (except CTX³ 225/400/800) and CTX³ interlocking
