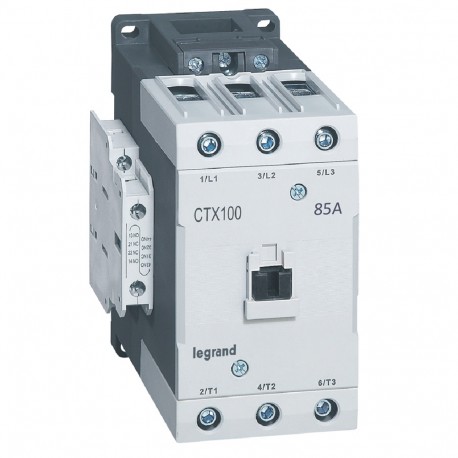

LEGRAND 416216 416216 LEGRAND CTX 3P 85A 2NO2NC 230V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416216 LEGRAND CTX 3P 85A 2NO2NC 230V AC

416216

416216

LEGRAND

1 Pcs.

CTX 3P 85A 2NO2NC 230V AC 3-pole contactors CTX³ 65 - 85 A 230 V~ - 2 NO + 2 NC - lug terminals Contactor CTX³ 3P 85A 2NO2NC 230V AC

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 416216 CTX 3-pole contactor is engineered for switching high-power electric motors and industrial electrical distribution networks. These robust units offer reliable circuit control and longevity in demanding commercial and factory automation setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 135 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 45 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 62 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 30 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 85 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.153
  • Weight (g)1 723.00
Product characteristics
CTX³ 100
  • With integrated auxiliary contacts
85 A (AC3) - 135 A (AC1)
  • Cage terminals
  • 3-phase motor 400/415 V : 45 kW
  • Control Voltage : 230 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
