View larger
Images are for illustrative purposes only. Please refer to data sheet for details

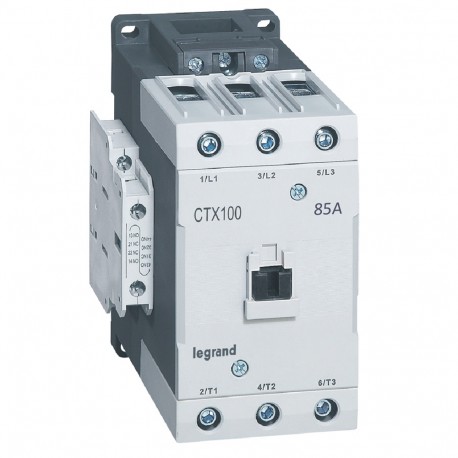

416210 LEGRAND CTX 3P 85A 2NO2NC 24V AC
416210
416210
LEGRAND
1 Pcs.
CTX 3P 85A 2NO2NC 24V AC
3-pole contactors CTX³ 65 - 85 A - 24 V~ - 2 NO + 2 NC - lug terminals
Contactor CTX³ 3P 85A 2NO2NC 24V AC
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)2.153
- Weight (g)1 723.00
Product characteristics
CTX³ 100- With integrated auxiliary contacts
- Cage terminals
- 3-phase motor 400/415 V : 45 kW
- Control Voltage : 24 V~
- Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors- Conform to IEC 60947-1, IEC 60947-4-1
- Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at AC-1, 400 V (EF001393) | 135 A |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Rated operation power at AC-3, 400 V (EF001364) | 45 kW |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 62 A |
| Voltage type for actuating (EF008242) | AC |
| Rated operation power at AC-4, 400 V (EF008496) | 30 kW |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 85 A |
| Modular version (EF001126) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 20.4 V |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Rated control supply voltage AC 60 Hz (EF003979) | 20.4 V |
