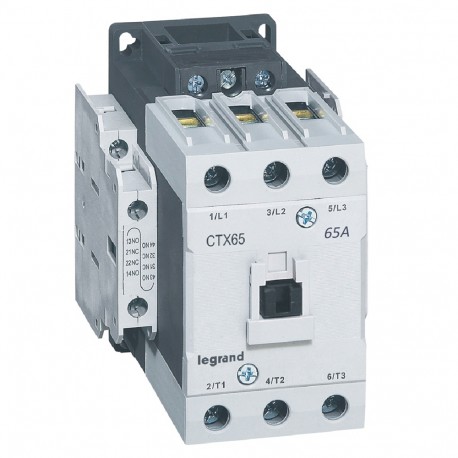

LEGRAND 416176 416176 LEGRAND CTX 3P 65A 2NO2NC 230V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416176 LEGRAND CTX 3P 65A 2NO2NC 230V AC

416176

416176

LEGRAND

1 Pcs.

CTX 3P 65A 2NO2NC 230V AC 3-pole contactors CTX³ 65 - 65 A 230 V~ - 2 NO + 2 NC - lug terminals CTX³ 65 - 65A - 230V~ - 2 NA + 2 NC Three-Pole Contactors - Grommet Terminals

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Motor control circuits and heavy electrical loads are efficiently managed using the Legrand 416176 power contactor. Industrial automation installations rely on such electromechanical components to provide remote switching and robust circuit protection across complex machinery networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 100 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 47 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 22 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 65 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 50 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.309
  • Weight (g)980.00
Product characteristics
CTX³ 65
  • With integrated auxiliary contacts
65 A (AC3) - 100 A (AC1)
  • Cage terminals
  • 3-phase motor 400/415 V : 30 kW
  • Control Voltage : 230 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
