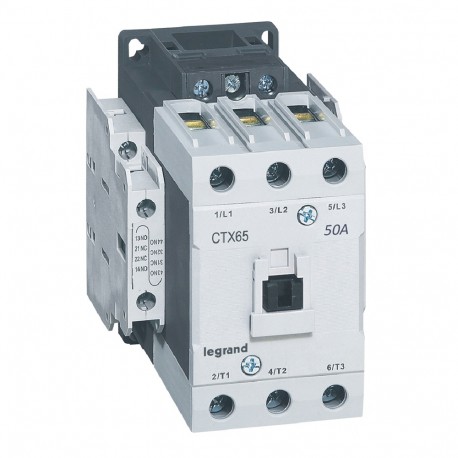

416156 LEGRAND CTX 3P 50A 2NO2NC 230V AC
416156
416156
LEGRAND
1 Pcs.
CTX 3P 50A 2NO2NC 230V AC
3-pole contactors CTX³ 65 - 50 A 230 V~ - 2 NO + 2 NC - lug terminals
CTX³ 65 - 50A - 230V~ - 2 NA + 2 NC Three-Pole Contactors - Grommet terminals
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 416156 CTX power contactor manages electrical currents in automated industrial distribution boards and heavy-duty motor applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated operation current Ie at AC-1, 400 V (EF001393): 70 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation power at AC-3, 400 V (EF001364): 22 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 32 A
- Voltage type for actuating (EF008242): AC
- Rated operation power at AC-4, 400 V (EF008496): 15 kW
- Rated operation current Ie at AC-3, 400 V (EF001392): 50 A
- Modular version (EF001126): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
- Type of electrical connection of main circuit (EF006819): Screw connection
More info
▲- Pack (number of units)1
- Volume (dm3)1.309
- Weight (g)967.00
Product characteristics
CTX³ 65- With integrated auxiliary contacts
- Cage terminals
- 3-phase motor 400/415 V : 22 kW
- Control Voltage : 230 V~
- Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors- Conform to IEC 60947-1, IEC 60947-4-1
- Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
