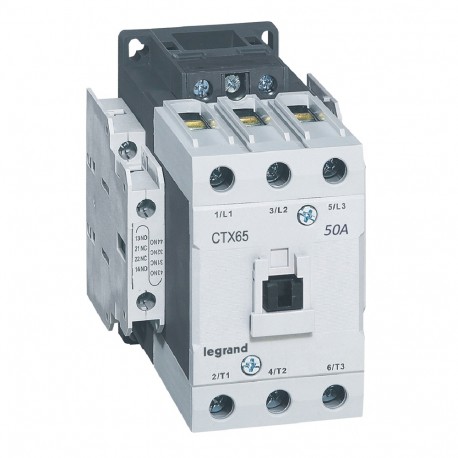

LEGRAND 416150 416150 LEGRAND CTX 3P 50A 2NO2NC 24V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416150 LEGRAND CTX 3P 50A 2NO2NC 24V AC

416150

416150

LEGRAND

1 Pcs.

CTX 3P 50A 2NO2NC 24V AC 3-pole contactors CTX³ 65 - 50 A - 24 V~ - 2 NO + 2 NC - lug terminals CTX³ 65 - 50A - 24V~ - 2 NA + 2 NC Tripolar Contactors - Grommet terminals

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand CTX contactor (part number 416150) is an electromagnetic switching component utilized extensively in electrical distribution and automation panels to govern motor operations, lighting circuits, and industrial power management systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 70 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 32 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 15 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 50 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 20.4 V
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 20.4 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.273
  • Weight (g)963.00
Product characteristics
CTX³ 65
  • With integrated auxiliary contacts
50 A (AC3) - 70 A (AC1)
  • Cage terminals
  • 3-phase motor 400/415 V : 22 kW
  • Control Voltage : 24 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
