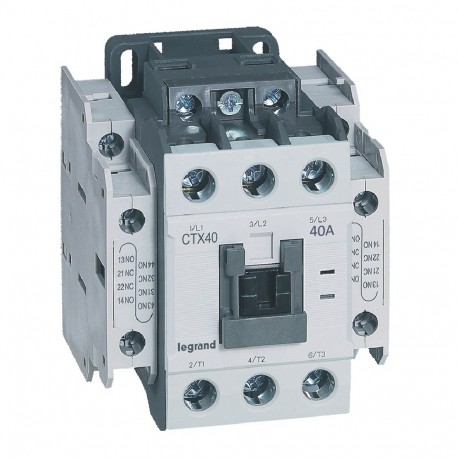

LEGRAND 416136 416136 LEGRAND CTX 3P 40A 2NO2NC 230V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416136 LEGRAND CTX 3P 40A 2NO2NC 230V AC

416136

416136

LEGRAND

1 Pcs.

CTX 3P 40A 2NO2NC 230V AC 3-pole contactors CTX³ 40 - 40 A 230 V~ - 2 NO + 2 NC - screw terminals CTX³ 40 - 40A - 230V~ - 2 NA + 2 NC Three-Pole Contactors - Terminal Blocks with Screw

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 416136 LEGRAND CTX 3P 40A 2NO2NC 230V AC is an industrial contactor utilized for frequent switching of electric motors, lighting circuits, and heavy resistive loads. Contactors provide automated switching capability, isolating high-power machinery from control circuits to protect operators and equipment during standard operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 60 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 17 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 7.5 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 40 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.675
  • Weight (g)572.00
Product characteristics
CTX³ 40
  • With integrated auxiliary contacts
  • Power terminals: screw terminals
40 A (AC3) - 60 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 18.5 kW
  • Control Voltage : 230 V~
  • Integrated auxiliary contacts : 2 NO + 2 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
