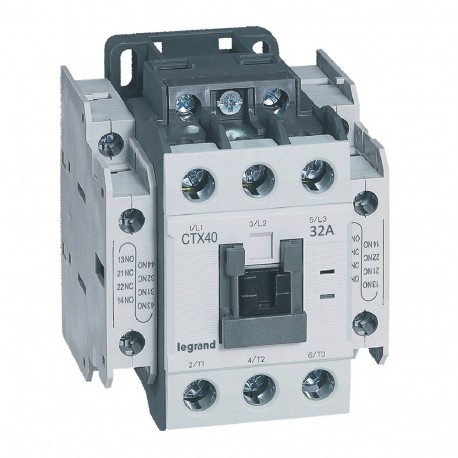

416126 LEGRAND CTX 3P 32A 2NO2NC 230V AC
416126
416126
LEGRAND
1 Pcs.
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 416126 contactor provides reliable electromechanical switching for industrial motor drives, lighting control systems, and power distribution switchboards. It is engineered for secure circuit isolation and frequent actuation in automated processes. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated operation current Ie at AC-1, 400 V (EF001393): 50 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation power at AC-3, 400 V (EF001364): 15 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 17 A
- Voltage type for actuating (EF008242): AC
- Rated operation power at AC-4, 400 V (EF008496): 7.5 kW
- Rated operation current Ie at AC-3, 400 V (EF001392): 32 A
- Modular version (EF001126): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
- Type of electrical connection of main circuit (EF006819): Cable clamp
- Rated control supply voltage AC 60 Hz (EF003979): 195.5 V
More info
▲- Pack (number of units)1
- Volume (dm3)0.668
- Weight (g)568.00
- With integrated auxiliary contacts
- Power terminals: screw terminals
- Screw terminals
- 3-phase motor 400/415 V : 15 kW
- Control Voltage : 230 V~
- Integrated auxiliary contacts : 2 NO + 2 NC
- Conform to IEC 60947-1, IEC 60947-4-1
- Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
