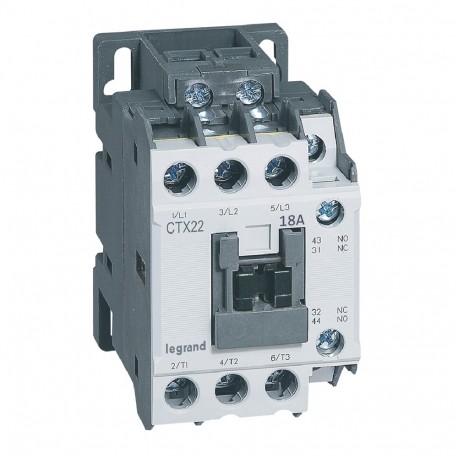

416106 LEGRAND CTX 3P 18A 1NO1NC 230V AC
416106
416106
LEGRAND
1 Pcs.
Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand CTX 3P contactor is an industrial-grade switching device engineered to manage motor loads and electrical distribution networks with high reliability. Electrical contractors install these components inside control cabinets to facilitate safe remote switching for automation setups. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated operation current Ie at AC-1, 400 V (EF001393): 32 A
- Number of normally open contacts as main contact (EF001374): 3
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated operation current Ie at AC-4, 400 V (EF008495): 11 A
- Voltage type for actuating (EF008242): AC
- Rated operation power at AC-4, 400 V (EF008496): 4 kW
- Rated operation current Ie at AC-3, 400 V (EF001392): 18 A
- Modular version (EF001126): Yes
- Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
- Type of electrical connection of main circuit (EF006819): Cable clamp
- Rated control supply voltage AC 60 Hz (EF003979): 195.5 V
More info
▲- Pack (number of units)1
- Volume (dm3)0.371
- Weight (g)359.00
- With integrated auxiliary contacts
- Power terminals: screw terminals
- Screw terminals
- 3-phase motor 400/415 V : 7.5 kW
- Control Voltage : 230 V~
- Integrated auxiliary contacts : 1 NO + 1 NC
- Conform to IEC 60947-1, IEC 60947-4-1
- Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
