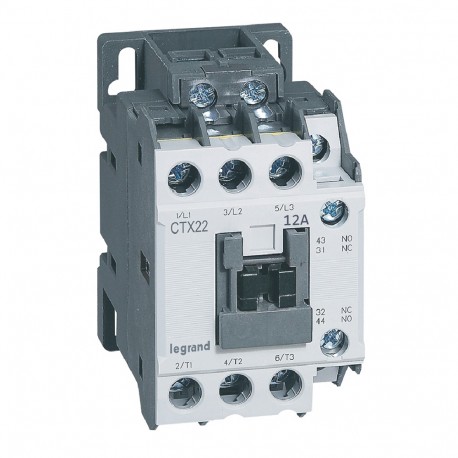

LEGRAND 416096 416096 LEGRAND CTX 3P 12A 1NO1NC 230V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416096 LEGRAND CTX 3P 12A 1NO1NC 230V AC

416096

416096

LEGRAND

1 Pcs.

CTX 3P 12A 1NO1NC 230V AC 3-pole contactors CTX³ 22 - 12 A 230 V~ - 1 NO + 1 NC - screw terminals CTX³ 22 - 12A - 230V~ - 1 NA + 1 NC Three-Pole Contactors - Terminal Blocks w/Screw

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Electrical control panels rely on devices like the 416096 LEGRAND CTX 3P 12A 1NO1NC 230V AC to switch power supplies to motors, lighting arrays, and heating equipment automatically. Contactors provide safe switching isolation for complex automated systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 25 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 9 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 4 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 12 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 195.5 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 195.5 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.371
  • Weight (g)343.00
Product characteristics
CTX³ 22
  • With integrated auxiliary contacts
  • Power terminals: screw terminals
12 A (AC3) - 25 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 5.5 kW
  • Control Voltage : 230 V~
  • Integrated auxiliary contacts : 1 NO + 1 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
