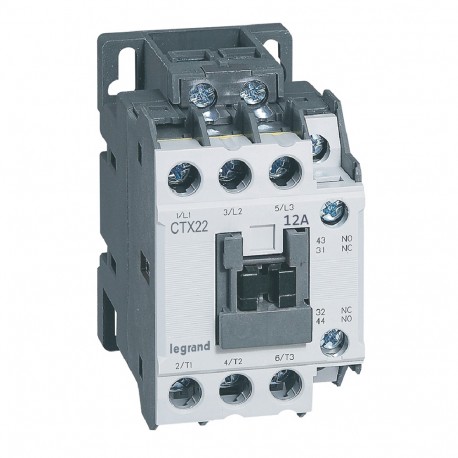

LEGRAND 416090 416090 LEGRAND CTX 3P 12A 1NO1NC 24V AC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

416090 LEGRAND CTX 3P 12A 1NO1NC 24V AC

416090

416090

LEGRAND

1 Pcs.

CTX 3P 12A 1NO1NC 24V AC 3-pole contactors CTX³ 22 - 12 A - 24 V~ - 1 NO + 1 NC - screw terminals CTX³ 22 - 12A - 24V~ - 1 NA + 1 NC Three-Pole Contactors - Terminal Blocks w/Screw

Automation > Power contactor, AC switching
INDUSTRIAL CONTACTORS / SWITCHES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 416090 contactor is an electromechanical device widely applied in electrical distribution boards, lighting control systems, and commercial automation setups. These components enable automated switching of electrical circuits for optimal energy management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current Ie at AC-1, 400 V (EF001393): 25 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW
  • Rated operation current Ie at AC-4, 400 V (EF008495): 9 A
  • Voltage type for actuating (EF008242): AC
  • Rated operation power at AC-4, 400 V (EF008496): 4 kW
  • Rated operation current Ie at AC-3, 400 V (EF001392): 12 A
  • Modular version (EF001126): Yes
  • Rated control supply voltage AC 50 Hz (EF003978): 20.4 V
  • Type of electrical connection of main circuit (EF006819): Cable clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 20.4 V

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.343
  • Weight (g)353.00
Product characteristics
CTX³ 22
  • With integrated auxiliary contacts
  • Power terminals: screw terminals
12 A (AC3) - 25 A (AC1)
  • Screw terminals
  • 3-phase motor 400/415 V : 5.5 kW
  • Control Voltage : 24 V~
  • Integrated auxiliary contacts : 1 NO + 1 NC
General characteristics
3-pole contactors CTX³ - 9 A to 100 A industrial contactors
  • Conform to IEC 60947-1, IEC 60947-4-1
  • Can be equipped with RTX³ thermal relays add-on auxiliary contact blocks, time delay blocks, capacitor switching units and CTX³ interlocking
