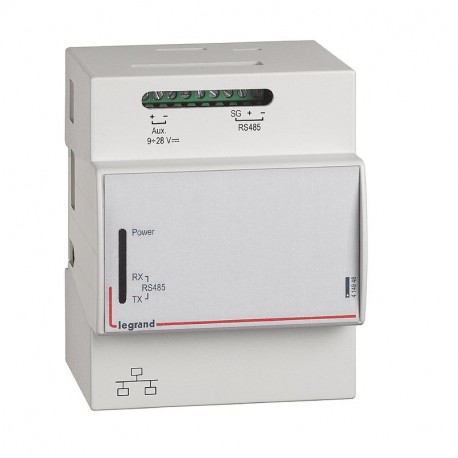

414948 LEGRAND MINI WEBSERVER ENERGIE 32
414948
414948
LEGRAND
1 Pcs.
Automation > Fieldbus, decentr. periphery - communication module
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A mini web server energy module is an industrial data logging and web-based monitoring gateway used to track energy consumption metrics and system performance across automation networks. The Legrand 414948 unit mounts inside electrical enclosures to provide accessible diagnostic and power management data over Ethernet protocols.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Radio standard UMTS (EF008525): No
- Height (EF000040): 90.5 mm
- Supporting protocol for INTERBUS-Safety (EF006662): No
- Radio standard GPRS (EF008523): No
- Radio standard GSM (EF008524): No
- With potential separation (EF003272): Yes
- System accessory (EF004118): Yes
- Supporting protocol for PROFINET CBA (EF007524): No
- Supporting protocol for PROFINET IO (EF007525): No
- Voltage type (supply voltage) (EF002991): DC
- Supporting protocol for PROFIsafe (EF007526): No
- Supporting protocol for SafetyBUS p (EF007527): No
- Supporting protocol for DeviceNet Safety (EF007520): No
- Supporting protocol for EtherNet/IP (EF007521): Yes
- Supporting protocol for Foundation Fieldbus (EF007522): No
- Depth (EF000049): 62 mm
More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.716
- Weight (g)176.00
- Allow remote configuration, test, control and visualization, via a web browser on PCs, smartphones, web viewers, tablet computers, of data collected from: protection devices (DX³ add-on modules with integrated measurement control unit, DPX³ and DMX³), EMDX³ electricity meters and multi-function measuring units, CX³ energy management system and Green'up charging stations for electric vehicles
- Direct IP connection
- Power supply: 9 to 28 V= with the help of a single-phase switching mode power supply Cat.No 1 467 21 to be ordered separately
- For 32 Modbus adresses or 32 pulse modules
- Number of modules : 4
- With the Legrand Power supervision system, circuit breakers are integrated in a supervision system
- You can therefore check the status of the circuit breakers, measure the electrical values and control the circuit breakers remotely
- MODBUS protocol
