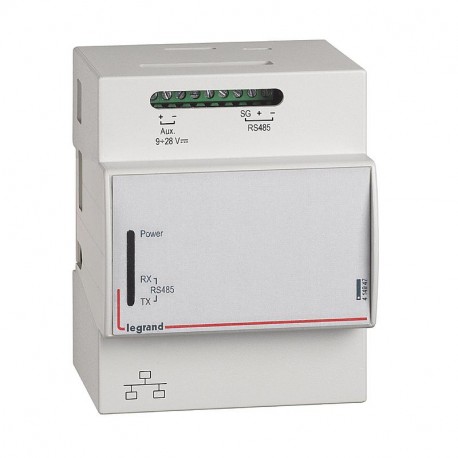

414947 LEGRAND MINI WEBSERVER ENERGIE 10
414947
414947
LEGRAND
1 Pcs.
MINI WEBSERVER ENERGIE - 10
Energy management multi-support web server for 10 modules bus adresses or 10 pulse modules
Web server for remote management and consultation for 10 MODBUS addresses
Automation > Fieldbus, decentr. periphery - communication module
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.716
- Weight (g)174.00
Product characteristics
Energy management multi-support web servers- Allow remote configuration, test, control and visualization, via a web browser on PCs, smartphones, web viewers, tablet computers, of data collected from: protection devices (DX³ add-on modules with integrated measurement control unit, DPX³ and DMX³), EMDX³ electricity meters and multi-function measuring units, CX³ energy management system and Green'up charging stations for electric vehicles
- Direct IP connection
- Power supply: 9 to 28 V= with the help of a single-phase switching mode power supply Cat.No 1 467 21 to be ordered separately
- For 10 Modbus adresses or 10 pulse modules
- Number of modules : 4
General characteristics
Power supervision system - remote control, monitoring and measurement- With the Legrand Power supervision system, circuit breakers are integrated in a supervision system
- You can therefore check the status of the circuit breakers, measure the electrical values and control the circuit breakers remotely
- MODBUS protocol
| Feature Name | Feature Value |
|---|---|
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Radio standard UMTS (EF008525) | No |
| Height (EF000040) | 90.5 mm |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| With potential separation (EF003272) | Yes |
| System accessory (EF004118) | Yes |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Voltage type (supply voltage) (EF002991) | DC |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Depth (EF000049) | 62 mm |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 71.3 mm |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Rack-assembly possible (EF007018) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for KNX (EF003055) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Radio standard WLAN 802.11 (EF007179) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Front built-in possible (EF007016) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supply voltage DC (EF007534) | 9 V |
| Suitable for safety functions (EF001597) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| IO link master (EF007298) | No |
| Radio standard Bluetooth (EF007178) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Supporting protocol for CAN (EF003053) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Supporting protocol for TCP/IP (EF003050) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Wall mounting/direct mounting (EF007020) | Yes |
| Supporting protocol for other bus systems (EF003062) | No |
