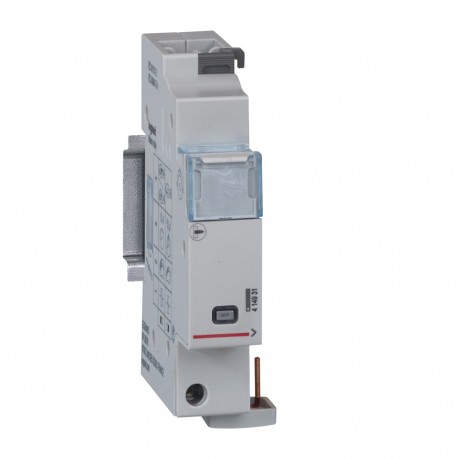

LEGRAND 414931 414931 LEGRAND EMS CX3 MOD AUX. FOR TL-TC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414931 LEGRAND EMS CX3 MOD AUX. FOR TL-TC

414931

414931

LEGRAND

1 Pcs.

EMS CX3 MOD AUX. FOR TL-TC Control & state reporting modules CX³ - for latching relay or contactor - 1 module EMS CX³ Status Indication and Control Module

Automation > Auxiliary device for distribution board devices
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 414931 EMS CX3 modular auxiliary unit interfaces with remote control switches to provide status feedback and integration within energy management systems. These components allow facilities managers to monitor electrical loads across commercial distribution networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Remote drive
  • Number of fault-signal switches (EF007613): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Width in number of modular spacings (EF002950): 1
  • Suitable for max. current main contact unit (EF008730): 6 A
  • Voltage type (EF000187): AC
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as normally open contact (EF008256): 0
  • Rated switch current (EF006706): 6 A
  • With auto test for earth leakage function (EF008727): No
  • Rated voltage (EF000228): 250 V
  • Device fitting (EF007826): Auxiliary switch / relay

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.332
  • Weight (g)89.00
Product characteristics
Control and state reporting module
For CX³ latching relays and 1 and 2-module contactors up to 25 A
  • Enables upstream busbar connection
  • Indicates the position of the contacts and enables remote control of its associated product
  • Equipped with DIP switches (on the side) allowing product configuration: selection of the main product (latching relay or contactor).
  • To fit on the left-hand side of the CX³ latching relays and contactors
  • Consumption: 0.372 W - 31 mA (12 V =)
  • Number of modules : 1
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
