View larger
Images are for illustrative purposes only. Please refer to data sheet for details

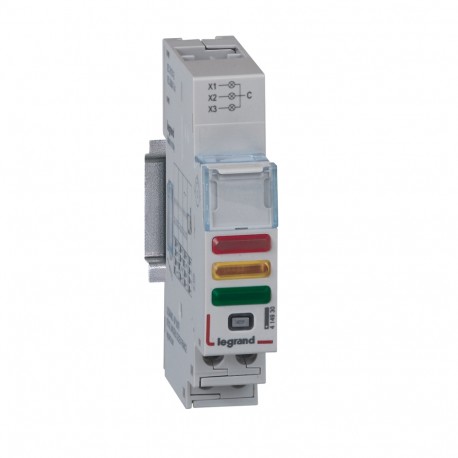

414930 LEGRAND EMS CX3 VIEWER MULTI FUNCTION
414930
414930
LEGRAND
1 Pcs.
EMS CX3 VIEWER MULTI FUNCTION
State reporting modules CX³ - universal signalling - 3 LED lights - 1 module
EMS CX³ Universal Signaling Module
Automation > Indicator light complete
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)0.219
- Weight (g)62.00
Product characteristics
State reporting modulesUniversal signalling module
- Enables upstream busbar connection
- Equipped with 3 LED lights: green, red and yellow
- Indicates various type of information, according to selected configuration:
- contacts position, plugged-in or drawn-out product, etc…
- Equipped with DIP switches (on the side) allowing product configuration: selection of information type and of the LED behaviour
- Compatible with symmetrical rail mounting protection devices or head equipment (DMX³ and DPX³)
- Consumption: 0.377 W - 31.4 mA (12 V =)
- Number of modules : 1
General characteristics
CX³ energy management system- Conform to IEC/EN 61131-2 (Programmable controllers)
- CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
- All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
- Power supply with specific module Cat.No 4 149 45
- Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
| Feature Name | Feature Value |
|---|---|
| Material front ring (EF005972) | Plastic |
| Type of lamp socket (EF008229) | LED |
| With front ring (EF006014) | No |
| Degree of protection (IP) (EF005474) | IP40 |
| Voltage type (EF000187) | DC |
| Hole diameter (EF000079) | 14 mm |
| Width opening (EF004565) | 14.276 mm |
| Type of electric connection (EF003961) | Other |
| Type of lens (EF008343) | High |
| Construction type lens (EF006253) | Rectangular |
| Degree of protection (NEMA) (EF011959) | Other |
| Number of indicator lights (EF001965) | 3 |
| Height opening (EF004778) | 4.272 mm |
| Colour lens (EF000207) | Other |
| With light source (EF005905) | Yes |
| Colour front ring (EF002429) | Other |
| Rated operating voltage Ue (EF002418) | 12 V |
