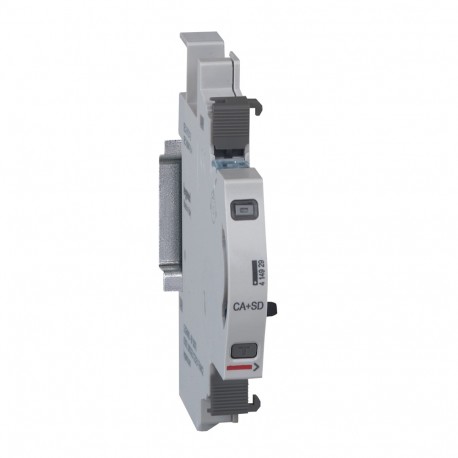

LEGRAND 414929 414929 LEGRAND EMS CX3 MOD AUX. CA+SD 1/2MOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414929 LEGRAND EMS CX3 MOD AUX. CA+SD 1/2MOD

414929

414929

LEGRAND

1 Pcs.

EMS CX3 MOD AUX. CA+SD 1/2MOD State reporting modulesule CX³ - auxiliary + fault signalling contact - 0.5 module CA+SD EMS CX³ Signaling Auxiliary Module

Automation > Auxiliary device for distribution board devices
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand EMS CX3 mod aux. ca+sd 1/2mod, designated by part number 414929, is an auxiliary and fault-signal switch built to monitor the operational status of compatible circuit protection devices in electrical distribution panels. These auxiliary components provide remote feedback regarding breaker positions and trip events to enhance system diagnostics.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Auxiliary switch / fault-signal switch
  • Number of fault-signal switches (EF007613): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Width in number of modular spacings (EF002950): 0.5
  • Suitable for max. current main contact unit (EF008730): 0 A
  • Voltage type (EF000187): DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated switch current (EF006706): 0 A
  • With auto test for earth leakage function (EF008727): No
  • Rated voltage (EF000228): 0 V

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.219
  • Weight (g)55.00
Product characteristics
State reporting modules
Auxiliary + fault signalling contact
  • Enables upstream busbar connection
  • Indicates the position of the contacts and the fault tripping of its associated device.
  • To fit on the left-hand side of DX3 MCBs, RCCBs, RCBOs and isolating switches
  • Consumption: 0.236 W - 19.7 mA (12 V =)
  • Number of modules : 0.5
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
