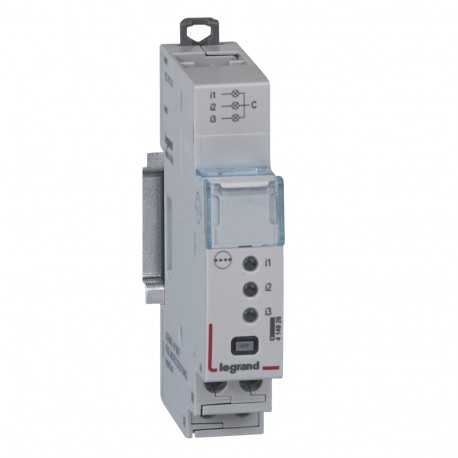

LEGRAND 414926 414926 LEGRAND EMS CX3 HUB IMPULSES View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414926 LEGRAND EMS CX3 HUB IMPULSES

414926

414926

LEGRAND

1 Pcs.

EMS CX3 HUB IMPULSES Module EMS CX3 hub impulses EMS CX³ Pulse Concentrator Module

Automation > Impulse meter for installation
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Module hub of impulses Allows you to gather measurements made by the counters of impulses (electricity, water, gas, etc) Supports the passage of the comb Up to 3 circuits of impulses. - Consumption at 12 V= : 0,288 W-24 mA - 1 module-17,5 mm

General characteristics

EMS CX3 (Energy Management System) is a system for the monitoring of the energy in the side tables or in the CGBT new or existing. In this way, it is possible to count/measure, report, trigger, schedule and display in both in situ and remote Connection: all the modules are provided with connection ports that are specific to a data transmission, either for profile caller (through the connector located at the rear of the modules) or by hose communicating (through the connectors located at the bottom of the modules) Configuration: in-situ, through the dip switches settings located on the side of the modules or distance in the configuration software Address: in-situ, through the selector, addressing each of the modules or at a distance in the software configuration system Power feeding module-specific ref 4 149 45 EMS System CX3 conform to IEC/en 61131-2 (programmable logic controllers) System EMS CX3 : monitoring of the energy connection technique and configuration Ref. Connection Profiles communicating Available in 3 lengths (for any other measure, please contact us) Receive and transmit the data of monitoring of the EMS system CX3 Are mounted in all kind of profiles and enhancements 4 149 01 Length 18 modules 4 149 02 Length 24 modules 4 149 03 Length 36 modules plastic Cover for profile caller Allows you to protect the part that is not used in the profile caller (use is mandatory) Fits to pressure in the profile and cut to the desired size 4 149 14 Length 36 modules patch Cords communicating Receive and transmit data of monitoring of the EMS system CX3 Are used in place of the profile adjoining, or in the case of extensions of rows connected to the profile 4 149 07 Length 250 mm - lot of 10 4 149 08 Length 500 mm - lot of 10 4 149 09 Length 1000 mm - lot of 5 extension Connector for hose communicating Allows you to increase the length of the patch cords connecting The patch cords connecting snap to both sides of the connector 4 149 10 maximum Length authorized from the hose informant: 3 m Lot of 5 Power 4 149 45 500 mA 12 V DC stabilized, Max 3 power modules in a system (under the EMS interface CX3/RS 485) 1 module-17,5 mm Ref. Settings

ETIM for 414926 Modular devices for distribution board/surface mounting (EC002300)
Feature Name Feature Value
Measuring mechanism (EF005015) Digital
Height (EF000040) 94.8 mm
Model (EF000010) DIN rail
Power loss (EF005387) 0.288 W
Width in number of modular spacings (EF002950) 1
Voltage type (EF000187) DC
Number of digits (EF005555) 3
Modular version (EF001126) Yes
Number of semiconductor outputs with signalling function (EF003945) 0
With reset function (EF006704) Yes
Width (EF000008) 17.8 mm
Number of contact energized outputs with signalling function (EF003946) 0
