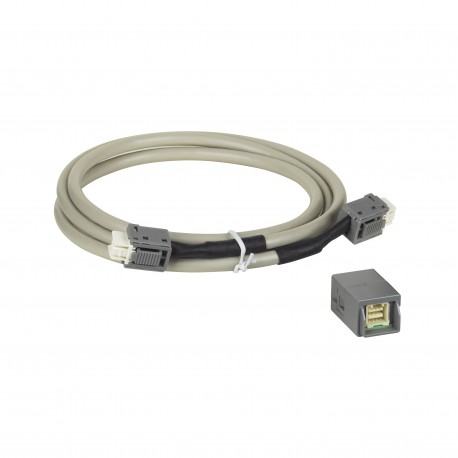

LEGRAND 414915 414915 LEGRAND ROGOWSKI EXTENSION KIT 1M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414915 LEGRAND ROGOWSKI EXTENSION KIT 1M

414915

414915

LEGRAND

1 Pcs.

ROGOWSKI EXTENSION KIT 1M Extension kit for Rogowski coils for CX³ measurement module - length 1m Extension kit for flexible cores with 1 meter opening Rogowki

Cables > Data and communication cable
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 414915 LEGRAND ROGOWSKI EXTENSION KIT 1M is a specialized accessory system used alongside flexible current sensors for electrical metering and power monitoring applications. Extension kits allow technicians to adapt measurement loops to varying busbar or cable dimensions within electrical distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Halogen free according to EN IEC 60754-2 (EF003792): Yes
  • Cable height approx. (EF003797): 5 mm
  • Reaction-to-fire according to EN 13501-6: Class (EF011577): Eca
  • Weight (EF000167): 42
  • Cable width approx. (EF003796): 5 mm
  • Duplex (EF023003): No
  • Conductor surface (EF010804): Bare
  • Number of sheath layers (EF016997): 1
  • Number of stranding elements (EF001688): 7
  • With rip cord (EF017088): No
  • Suitable for use as security alarm cable (EF017089): No
  • With rodent protection (EF007960): No
  • Colour outer sheath (EF001618): Grey
  • Radial water blocking cable (EF011012): No
  • Longitudinal water blocking cable (EF011011): No
  • Stranding element (EF001617): No

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)0.252
  • Weight (g)50.00
Product characteristics
Extension kits for Rogowski coils
  • Supplied with connectors
  • Lenght : 1 m
General characteristics
CX³ energy management system
  • Conform to IEC/EN 61131-2 (Programmable controllers)
  • CX³ energy management system enables to measure, control and visualize the state of rail mounting protection devices (MCBs, RCCBs, RCBOs, etc...) and head equipment (DMX³ and DPX³), locally ("Stand alone" ) or remotely
  • All the modules of the system are equipped with two specific communication ports: one at the backside (for communication rail) and one underneath (for communication patch cords)
  • Power supply with specific module Cat.No 4 149 45
  • Remote configuration possible with the help of the Energy Management Configuration Software, available for free download via E-Catalogue (giving also access to a 30-day trial version of Energy Management Software Cat.No 4 149 38/39)
